Description
CX5-01
CX5-02
Instruction
1) Patented design, moving pulling equipment.
2) Both location and height of main clamp can be adjusted.
3) Material of jaw is 35CrMo alloy steel,it has been high-frequency quenching, so it is durable.
4) Unique support arm system improves the support strength greatly.
5) Pneumatic pump with 140cu.in. output of oil supplies powerful strength.
6) Down-pulling steering mechanism improves work efficiency greatly.
7) 180°turning tower makes pulling no blind angle.
8) 10 ton pressure cylinder makes power strong and pulling stroke long.
9) Pulling arm can wave 130°,improving work strength effectively.
10) Electrostatic spray makes it beautiful and durable.
11) Sawtooth style chain fixing system improve the scalability of chain.
12) Lengthen auxiliary pulling arm enlarge the work scope.

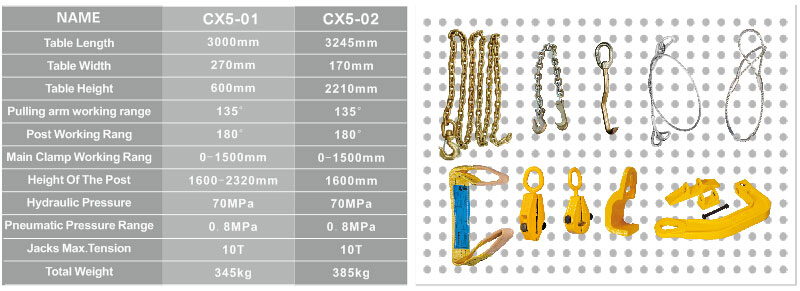

CX5-01
Table Length: 3000mm
Table Width: 270mm
Table Height: 600mm
Pulling arm working range: 135°
Post Working Rang: 180°
Main Clamp Working Rang: 0-1500mm
Height of the Post: 1600-2320mm
Hydraulic Pressure: 70Mpa
Penumatic Pressure Range: 0.8Mpa
Jacks Max. Tension: 10T
Total Weight: 345kg
CX5-02
Table Length: 3245mm
Table Width: 170mm
Table Height: 2210mm
Pulling arm working range: 135°
Post Working Rang: 180°
Main Clamp Working Rang: 0-1500mm
Height of the Post: 1600mm
Hydraulic Pressure: 70Mpa
Penumatic Pressure Range: 0.8Mpa
Jacks Max. Tension: 10T
Total Weight: 385kg




10T pressure cylinder. Heavy duty down pullay assembly. Penumataic hydraulic pump.



Supporting and fixing system. Moving wheels are installed. Height of single-jaw main clamp
Before main clamp installing, could be adjusted, and the jaw can turn in 360°
turning bolts make wheels
get off the ground.
Warranty: 12 months
Lead time: One week
