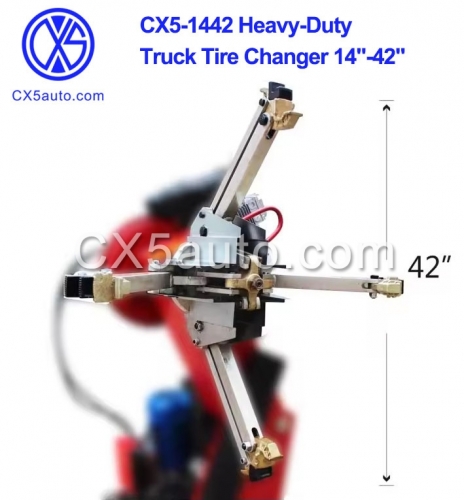

CX5-1442 Heavy-Duty Truck Tire Changer 14"-42"
Item No.: 252
The CX5-1442 Heavy-Duty Truck Tire Changer is a fundamental machine for your tire shop or large scale automotive service department. Perfect for tubeless truck, off-road and agricultural tires. With a maximum rim size of 42” and vertically designed uprigh
Description
Instruction
The CX5-1442 Heavy-Duty Truck Tire Changer is a fundamental machine for your tire shop or large scale automotive service department. Perfect for tubeless truck, off-road and agricultural tires. With a maximum rim size of 42” and vertically designed upright positioning, this machine can easily change the tires of semi-trucks, trailers, forklifts, tractors and other machinery.
Features
1. Semi-automatic multifunctional tire changer.
2. Suitable for industrial, agricultural and engineering vehicle tires with rim diameters of 14"-42".
3. Italian pump.
Specifications
Rim Diameter: 14"-42"
Max.Wheel weight: 1600KG
Max. Wheel width: 1050mm
Max.Tyre Diameter: 2300mm
Hydraulic Pump Motor: 2.2KW 380V-3PH-50HZ (220V optional)
Gearbox Motor: 2.2KW 380V-3PH-50HZ (220V optional)
Bead Breaker Force: 3300KG
Max.Torque: 5265N.m
Operation Control Voltage: 24V
Machine Weight Approx: 758KG
OVerall Dimensions Approx: 2500*2000mm
Power: 200/400V 50/60HZ 1P/3P Optional
Note: Customized voltage and frequency available ( parameters see the equipment label)
The rim locking system is made of zinc-aluminum alloy, which is high-strength and corrosion-resistant.
The claws are made of carbon steel, which is hard and not easy to wear.
Self-centering chuck, operating size from 14" to 42"
The joystick can be moved for easy operation.
The emergency stop switch can be controlled.
Driven by hydraulic motor transmission system, it makes tire disassembly and installation more powerful.
All-aluminum turbine box, pure copper motor, efficient and stable.
Advantages
1. Used for the disassembly and assembly of deep groove wheels, vacuum tires, and pressure ring tires for buses, trucks, agricultural vehicles, and industrial vehicles.
2. The tire removal arm is fully automatic for lifting and moving forward and backward.
3. The tire dismantling tool can rotate, and the disc core shaft on the tool head is designed with rolling bearings. Even with high tire resistance during operation, the tire can rotate freely.
4. Equipped with a hydraulic driven drag plate, the tire can move left and right on the disassembly and assembly machine without the need for manual labor.
5. Lightweight and portable operating table, convenient for observation from various angles during operation to prevent accidental operation.
6. Dual speed spindle motor to improve tire removal efficiency.
7. The lifting arm oil cylinder serves as the center support and is equipped with a safety protection switch.
Shipping Information
The order will ship from China. Under normal circumstances it will take us 7-15 business days to process the order and ship it.
It will take up to 30 to 60 business days for the order to get to you based on where you are located and how accessible the location is.
Payment terms
T/T
30% deposit.
70% balance.
The CX5-1442 Heavy-Duty Truck Tire Changer is a fundamental machine for your tire shop or large scale automotive service department. Perfect for tubeless truck, off-road and agricultural tires. With a maximum rim size of 42” and vertically designed upright positioning, this machine can easily change the tires of semi-trucks, trailers, forklifts, tractors and other machinery.
Features
1. Semi-automatic multifunctional tire changer.
2. Suitable for industrial, agricultural and engineering vehicle tires with rim diameters of 14"-42".
3. Italian pump.
Specifications
Rim Diameter: 14"-42"
Max.Wheel weight: 1600KG
Max. Wheel width: 1050mm
Max.Tyre Diameter: 2300mm
Hydraulic Pump Motor: 2.2KW 380V-3PH-50HZ (220V optional)
Gearbox Motor: 2.2KW 380V-3PH-50HZ (220V optional)
Bead Breaker Force: 3300KG
Max.Torque: 5265N.m
Operation Control Voltage: 24V
Machine Weight Approx: 758KG
OVerall Dimensions Approx: 2500*2000mm
Power: 200/400V 50/60HZ 1P/3P Optional
Note: Customized voltage and frequency available ( parameters see the equipment label)
The rim locking system is made of zinc-aluminum alloy, which is high-strength and corrosion-resistant.
The claws are made of carbon steel, which is hard and not easy to wear.
Self-centering chuck, operating size from 14" to 42"
The joystick can be moved for easy operation.
The emergency stop switch can be controlled.
Driven by hydraulic motor transmission system, it makes tire disassembly and installation more powerful.
All-aluminum turbine box, pure copper motor, efficient and stable.
Advantages
1. Used for the disassembly and assembly of deep groove wheels, vacuum tires, and pressure ring tires for buses, trucks, agricultural vehicles, and industrial vehicles.
2. The tire removal arm is fully automatic for lifting and moving forward and backward.
3. The tire dismantling tool can rotate, and the disc core shaft on the tool head is designed with rolling bearings. Even with high tire resistance during operation, the tire can rotate freely.
4. Equipped with a hydraulic driven drag plate, the tire can move left and right on the disassembly and assembly machine without the need for manual labor.
5. Lightweight and portable operating table, convenient for observation from various angles during operation to prevent accidental operation.
6. Dual speed spindle motor to improve tire removal efficiency.
7. The lifting arm oil cylinder serves as the center support and is equipped with a safety protection switch.
Shipping Information
The order will ship from China. Under normal circumstances it will take us 7-15 business days to process the order and ship it.
It will take up to 30 to 60 business days for the order to get to you based on where you are located and how accessible the location is.
Payment terms
T/T
30% deposit.
70% balance.
