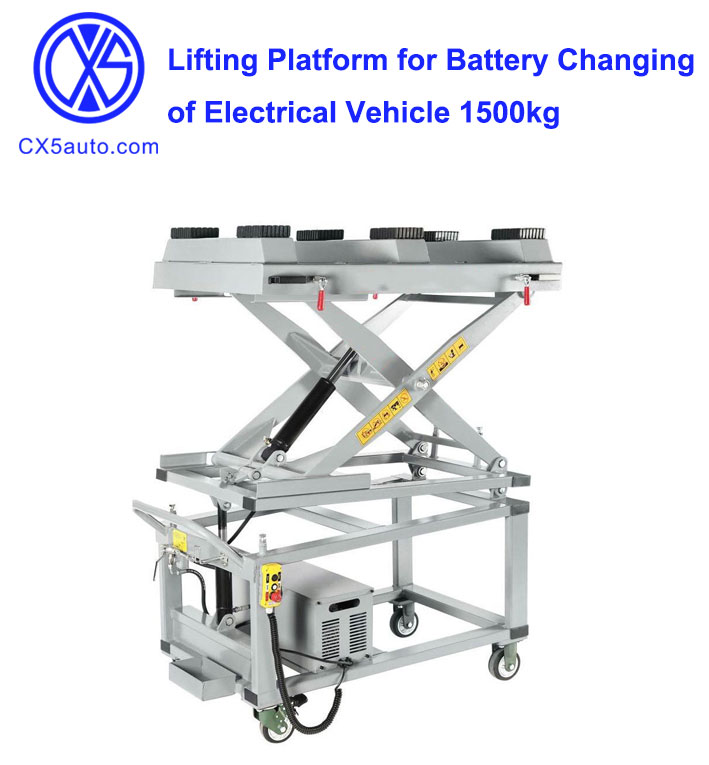

CX5-1.5 A Lifting Platform for Battery Changing of Electrical Vehicle /1500KG
Item No.: 270
New energy battery lift
1500kg
1500kg
Description
Features
Designed for new energy vehicles, suitable for maintenance of engine andgearbox.

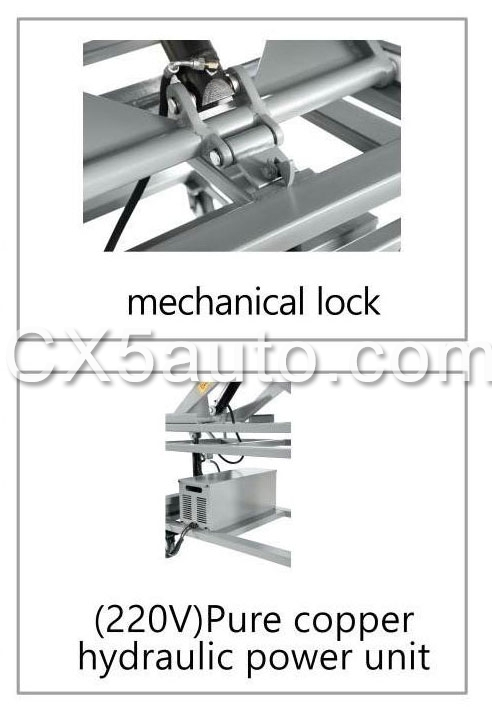

Automatic mechanical safety device, single shear design, smooth lifting,optional for electric or pneumatic hydraulic system.
The platform designed with grill and insulation paste can easy to move andsupport the new energy battery pack.

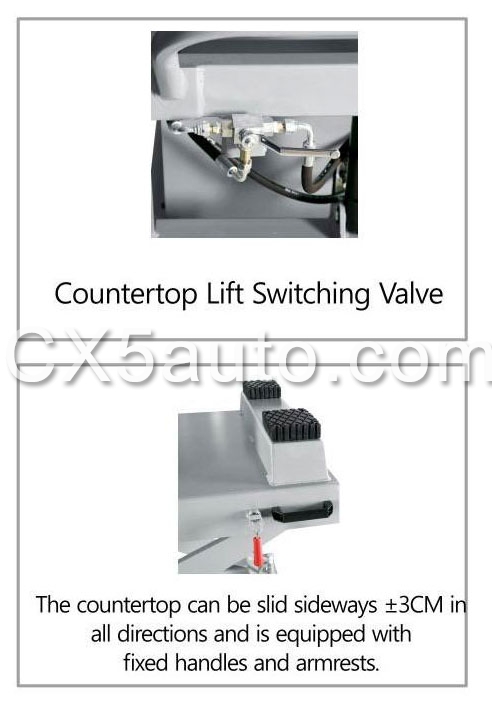

Table platform can be universal sliding and manual locking design foraccurate positioning.
The table can be tilted 0-4 degrees forward and back to achieve the best Angleft with the vehicle

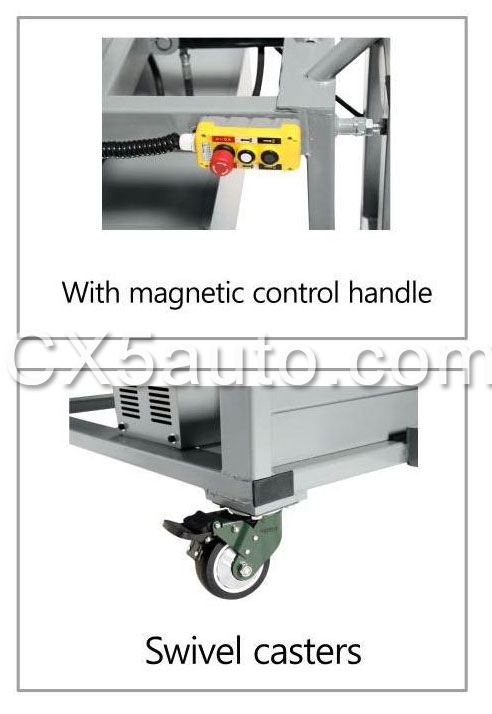

Universal self-locking wheel operation is faster and more convenient.
12V electric control box module is equipped with battery, no external powersupply is required.
The hydraulic system is equipped with explosion-proof device, safe andreliable operation.

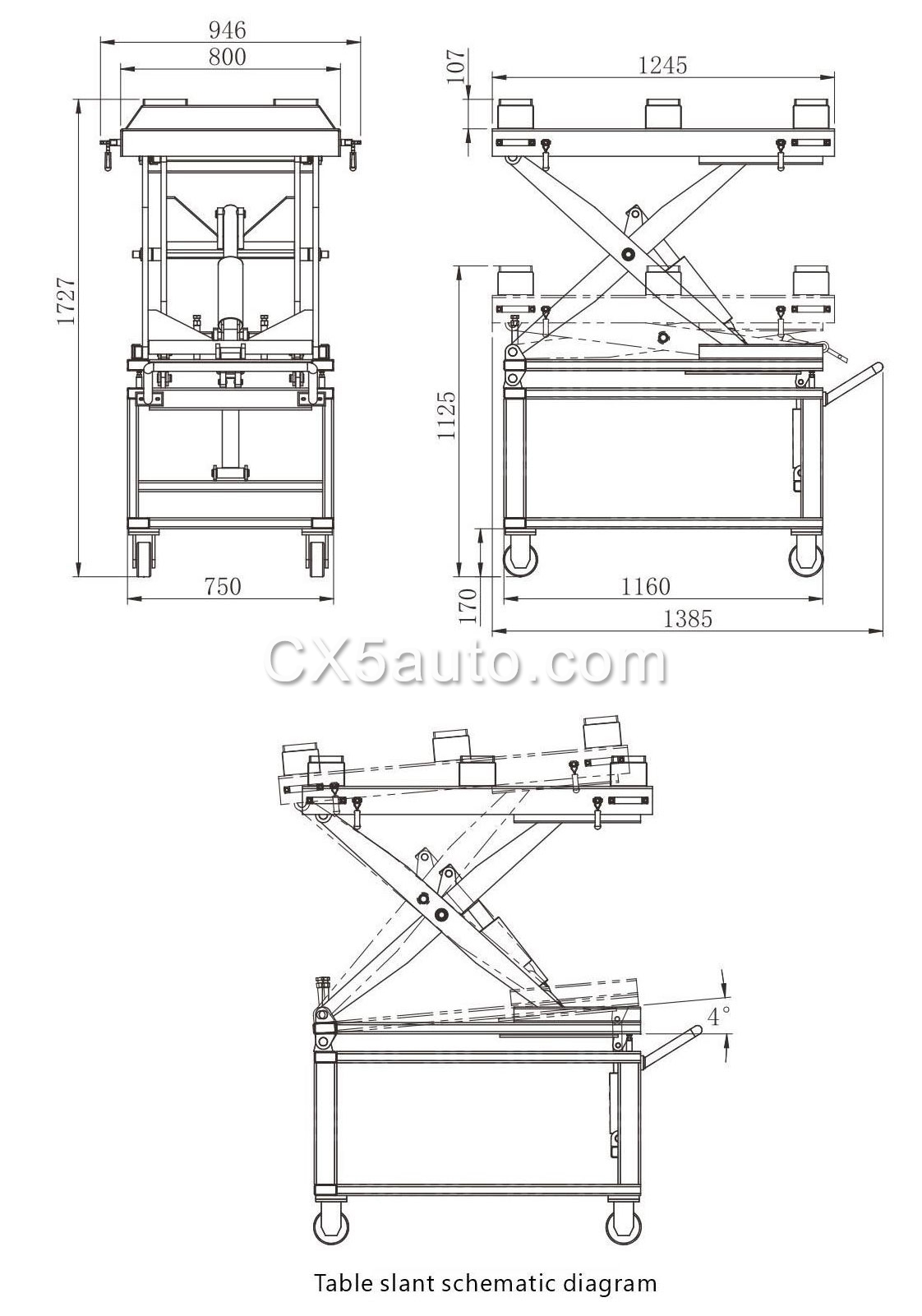

Specification
Lifting capacity: 1500 kg
Table size: 1245x800 mm
Lifting height: 1727 mm
self-locking: 1660 mm
Minimum height: 1125 mm
Lifting time: 25S
Length of machine: 1385 mm
Overall height: 1125 mm
Overall width: 946 mm
Overall weight: 385 kg
Drive mode: electric pneumatic hydraulic(optional)
electro-220V 0.75kw
hydraulic 12V 0.8kw
Pneumatic pump: 6-8 bar
