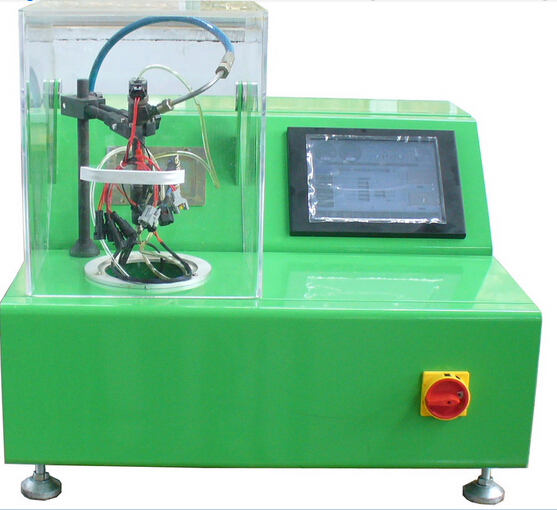

CX5-200 have a good performance to test injector,( bosch,denso.Siemens,delphi.)

Item No.: 041
Full-automatic operation procedure, save the time to set up the data.
INQUIRY
Description Specification Languages Accessories

Specification

Main Motor Power: 2.6kw
Voltage: 3-Phase 380v /50hz
Motor Rotate Speed: 0-4000RPM(DTC )
Rail Pressure Testing Range: 0-1800bar(0-180Mpa)
Test oil Tank Capacity: 2.5 L
Feeding Pump: Power 0.75kw. 6.5L/MIN
Oil Heater: 2kw
Temperature Range of  Testing Oil: 0-200℃
Certification: CE/ISO9001
Flow  Sensor  Measuring
Testing oil Type: DIN/ISO 4113
Small volumetric cylinder: 45ml
Filter oil precision: 4.5-5.5u
Forced Cooling Abality: 1.5℃/min
Sets Total Weight: 130kg





Function

1. Application for DENSO , BOSCH , DELPHI SIEMENS,  Common Rail Injectors
2. Return oil quantity and injection quantity display on computer by sensor
3. Support Piezoelectric Injector
4. Clean the injector before testing.
5. Clean the ZME separately.
6. Injector test: measure the injected fuel quantity & return volume under full-loaded,idling, pre-injection and Emission status.
7. Check the sealing performance of the injector.
8. user can add and edit the data by themselves.
9. Save and print the testing results & customer information.
10. Support software upgrading.
11. Default Support Testing 1 injector ( optional Max support test 6 injector at one time)



Characteristics

1. Full-automatic operation procedure, save the time to set up the data.
2.Flow  sensor
3. Bosch common rail system (external connection DRV to Bosch rail with DRV) is
used.
4.Rail pressure is controlled accurately by DRV and ZME valve.
5. Original Bosch CP1 common rail pump is equipped.
6. Industrial computer with windows XP system.
7 Rich database:1500 types of data.
8. Self-protection under following status:overheat, oil-mist, over pressure, low oil leve
9. Remote control is convenient for software upgrading and after-sale service.
10. Frequency converter is used to change the rotation speed.
12.Support Multi-language( English Spanish , Russian, Portuguese.)
13.Test data can be save and printed by color printer




Standard Configuration

Testing Iterm Testing Result
Flow Sensor
Fan cooling
Piezoelectric Funtion
One injector testing at one time
Support 1 injector at one time
Forced cooling (air condition) customized

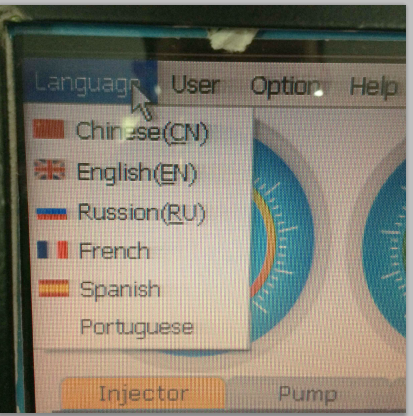

Operate interface Support  Chinese/English/Russian/French/Spanish/Portuguese language





Bosch Siemens Delphi Denso more than 1500 kinds of standard data in computer






Dimension


  AIO main part   Packing(appearance)
Length(cm) 85 90
Width(cm) 40 45
Height(cm) 98 120
Net weight(kg) 100 130





Details






Standard accessories







Package




Warranty: 12 months

Lead time: One week




Main Motor Power: 2.6kw
Voltage: 3-Phase 380v /50hz
Motor Rotate Speed: 0-4000RPM(DTC )
Rail Pressure Testing Range: 0-1800bar(0-180Mpa)
Test oil Tank Capacity: 2.5 L
Feeding Pump: Power 0.75kw. 6.5L/MIN
Oil Heater: 2kw
Temperature Range of  Testing Oil: 0-200℃
Certification: CE/ISO9001
Flow  Sensor  Measuring
Testing oil Type: DIN/ISO 4113
Small volumetric cylinder: 45ml
Filter oil precision: 4.5-5.5u
Forced Cooling Abality: 1.5℃/min
Sets Total Weight: 130kg


Operate interface Support Chinese/English/Russian/French/Spanish/Portuguese language
