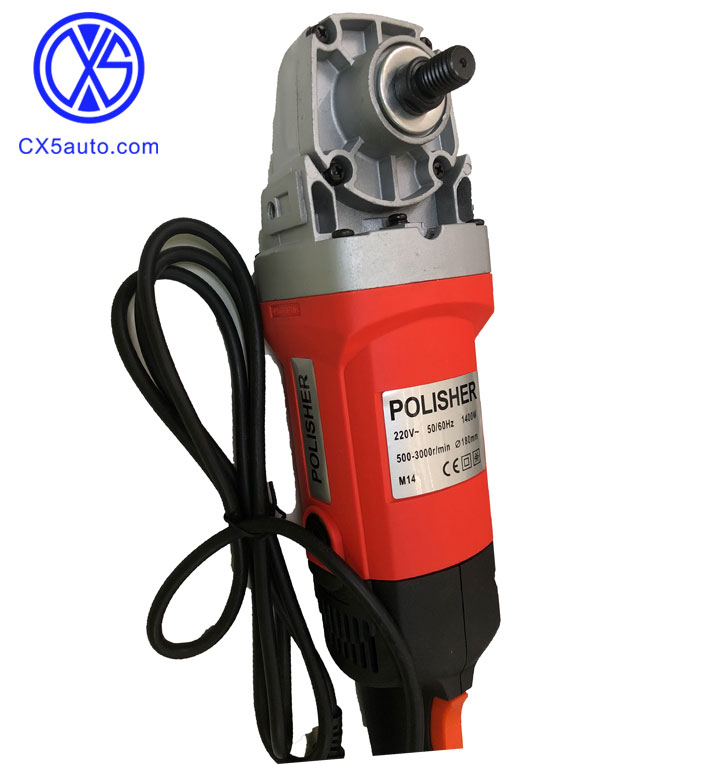

Electric Dic polisher
Ponceuse a Disque
Tellerschleifer
Levigatrice Rotative
Roterende Schuurmachine
Lijadora Rotativa
1. Structure and use
This tool belongs to H type of electric-driving tools, safe and reliable, advanced technological level, high efficiency, convenient repair it is the ideal tool for working on antomobiles, fumiture decorating and etc.
2. Technical parameter
Power: 110V/220V-240V 50/60hz
Rated power: 2400W
Rated current: 6.04
Spend: 1000-3000rotate/min
Dim of Polish Machine: 180mm
Net weight: 3.2kg
Parts List
1. Roller
2. Bearing
3. Bearing cover
4. Rotor
5. Screw M8*20
6. Washer
7. Handle
8. Bearing cover
9. Bearing 6201
10. Gear box
11. Screw ST4.8*35
12. Stop cover
13. Spring
14. Screw M5*16
15. Screw M5*12
16. Stop pin
17. Bearing 0810
18. Axle Check Ring
19. Gear
20. Axle Check Ring
21. Packing gland
22. Screw M4*16
23. Dust cover
24. Spindle
25. Wool wheel
26. Key 4*12
27. Brush cap
28. Carbon brush
29. Brush holder
30. Name plate
31. Stator
32. Screw ST4.8*70
33. Housing Ass'y
34. Label
35. Handle(L)
36. Cord cover
37. Cord
38. Cord flange
39. Screw ST4.2*18
40. Handle(R)
41. Switch
42. Rivet 2*10
43. Spring
44. Switch
45. Name plate
