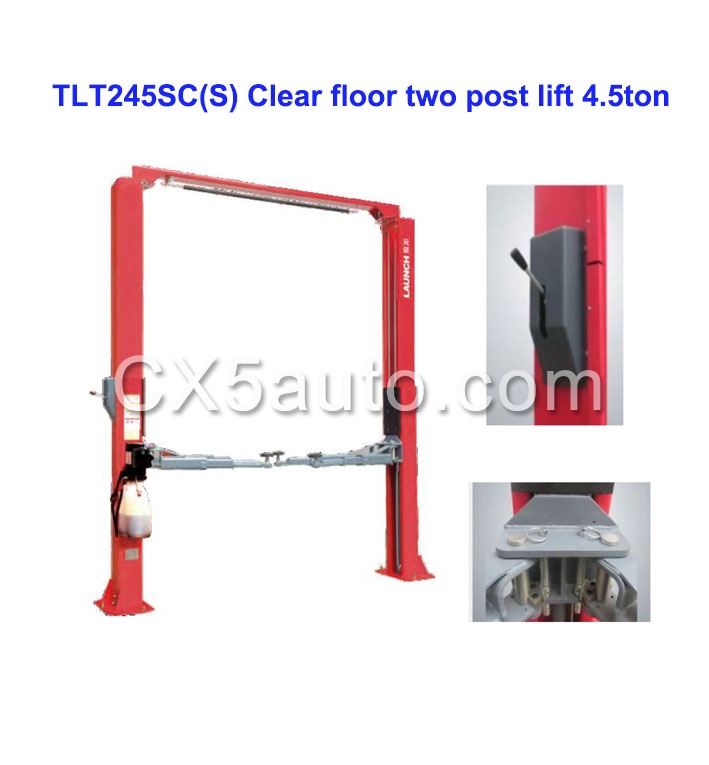

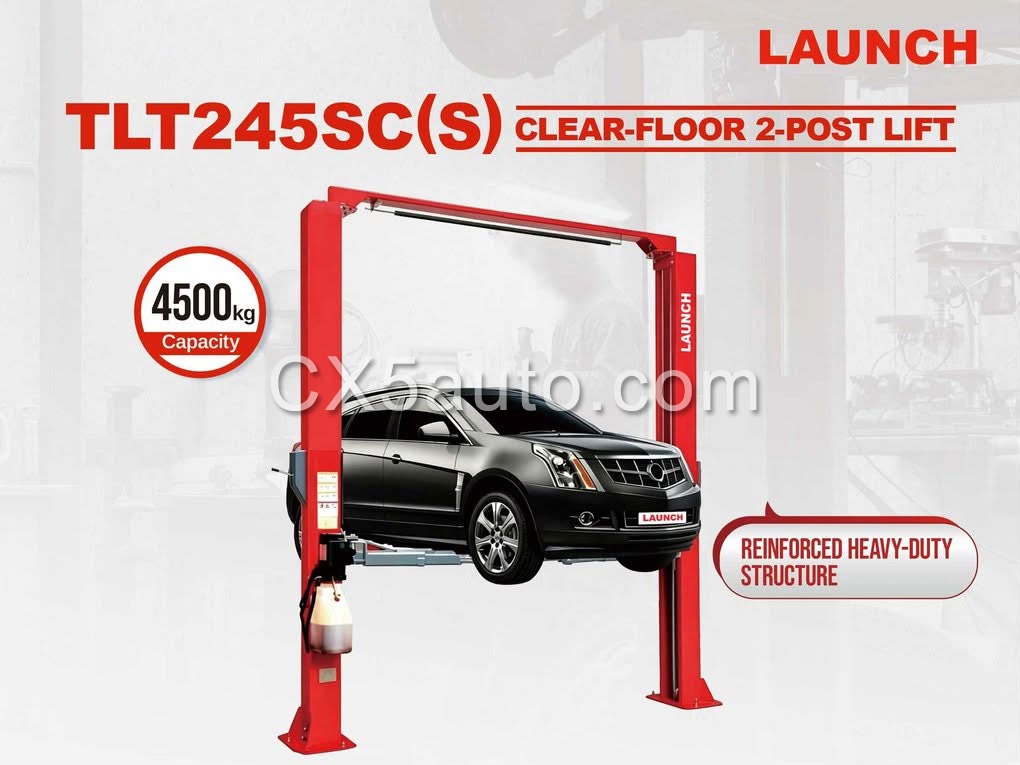

TLT245SC(S) CLEAR-FLOOR 2-POST LIFT 4.5ton
Item No.: 271
Engineered for heavy-duty performance, this beast packs a massive 4,500 kg (9,900 lb) lifting capacity and a reinforced structure built to handle tough, low-clearance, or larger vehicles with absolute ease.
Description
Instruction
Engineered for heavy-duty performance, this beast packs a massive 4,500 kg (9,900 lb) lifting capacity and a reinforced structure built to handle tough, low-clearance, or larger vehicles with absolute ease.
Why top tire garages choose the TLT245SC(S):

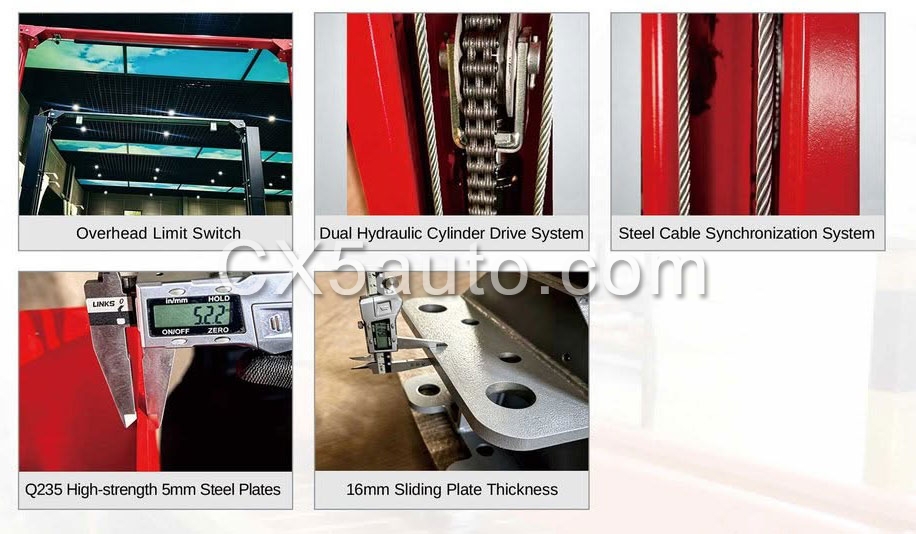

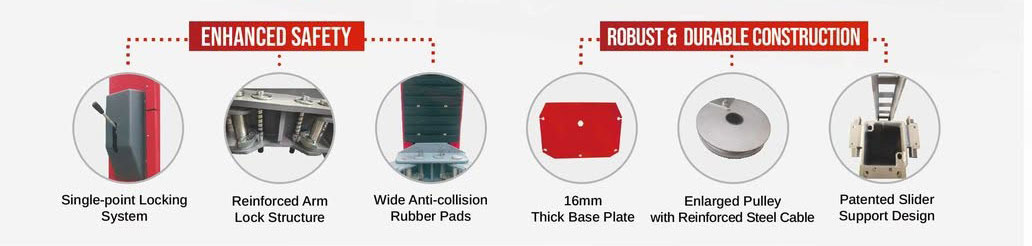

- Enhanced Safety: Equipped with an overhead limit switch to protect vehicle roofs and a single-point locking system for fast, secure operations.
- Built to Last: Features an ultra-rugged 16mm base plate and Q235 high-strength 5mm steel plates for maximum durability.
- Flawless Efficiency: Powered by a premium dual hydraulic cylinder drive and a synchronous steel cable system that guarantees zero vehicle tilting.
Upgrade your shop’s efficiency and safety in one go.
Features
Manual safety locking system enhances operational safety Steel cable synchronization system keeps both carriages and reliability.
Overhead limit switch helps prevent roof damage during lifting.
Dual hydraulic cylinders ensure smooth and stable lifting performance.
Integrated balance mechanism maintains stable and bal Manual lowering control for safe and convenient operation.
Steel cable synchronization system keeps both carriages moving simultaneously, helping prevent vehicle tilting.
Minimum pad height of 110 mm accommodates low-clear-ance vehicles.
Fully concealed cables and hydraulic hoses deliver a cleaner and more professional appearance.
Manual lowering control for safe and convenient operation.
Specification
Capacity: 4500kg / 9900lb
Lifting height: 1850mm / 72.8in
Lifting time: ≤55s
Overall Height: 3900mm / 102.2in
Motor power: 2.2kW
Descending time: ≥20s≤40s
Passing width: 2596mm / 102.2in
Machine width: 3528mm /138.9in
Machine height: 3900mm / 153.5in
