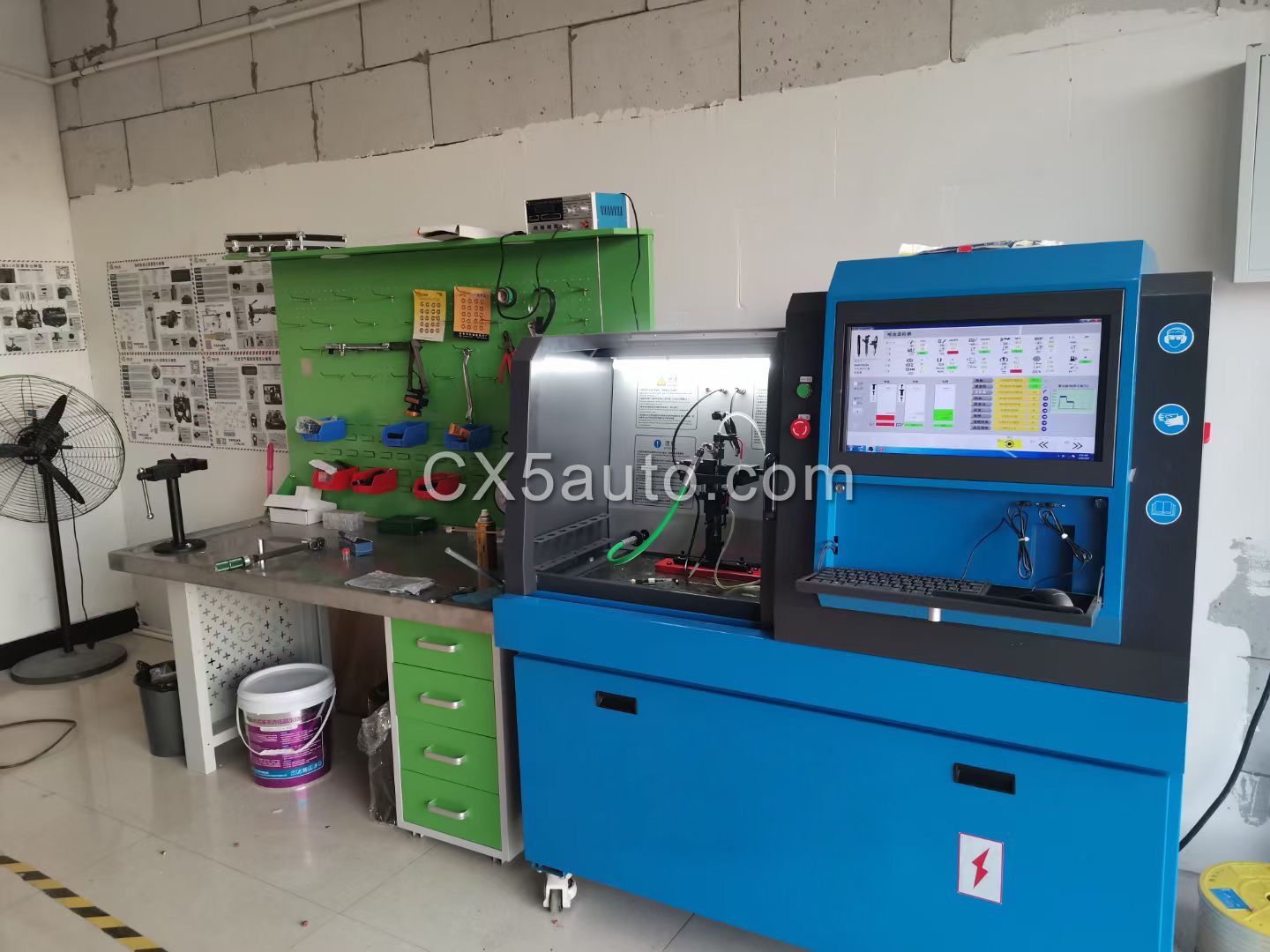

CX5-GY Common Rail Injector Test Bench
Item No.: 241
Can test: Bosch, Denso, Delphi, Siemens, Dongkang, Fukang, domestic fresh air and other high-pressure common rail injectors and piezoelectric injectors.
Description
Specification
Voltage: 220VAC/380VAC
Single Phase/Three Phase
50Hz/60Hz
Motor power: 4KW
Oil temperature control: Constant temperature heating/air conditioning compressor forced cooling
The ambient temperature of use is less than 35°C
Maximum common rail pressure: 180-230Ma
Common rail pump: Bosch CP3.0
Control circuit voltage: Dc24V/Dc12V
EcU internal boost: 0-200VDc(Max)
Test fuel tank volume: 70 liters
Noise level: <85dB
Weight: 300kg
Machine size: 145x85x123cm
Packing size: 155x95x135cm
Features
(1) Purpose: inspection, repair and remanufacturing of aftermarket common rail injectors
(2) Test scope:
Can test: Bosch, Denso, Delphi, Siemens, Dongkang, Fukang, domestic fresh air and other high-pressure common rail injectors and piezoelectric injectors.
(2) Test content:
Injector tightness; injector cleaning; fuel injection volume and fuel return volume at full load operating point; fuel injection volume at discharge, pre-injection, and idle points.
Testable injector response time
Injector compensation codes can be generated
Can test the resistance and inductance of the injector
The test standard data is consistent with the original factory data, and the test accuracy reaches the original factory standard
Real-time graph of fuel injector driving power can be generated
Can generate injector test report, support external printer
